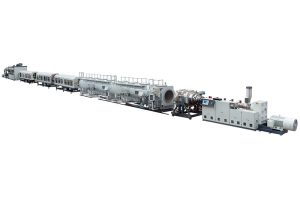

PE16-2000-Pipe-Extrusion-line

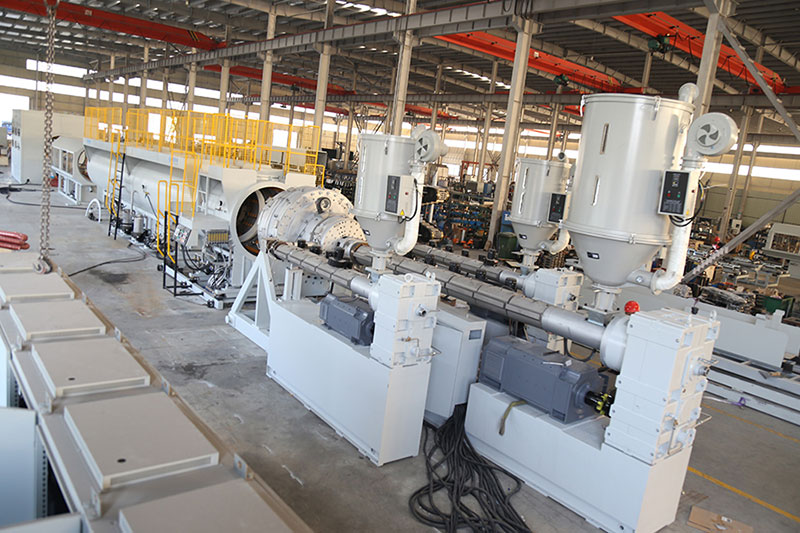

PE1000-Extrusion-Line

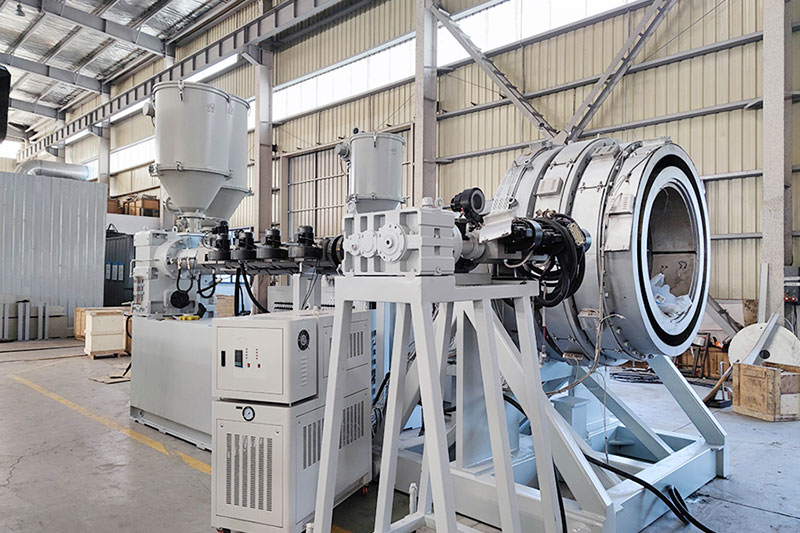

Mould

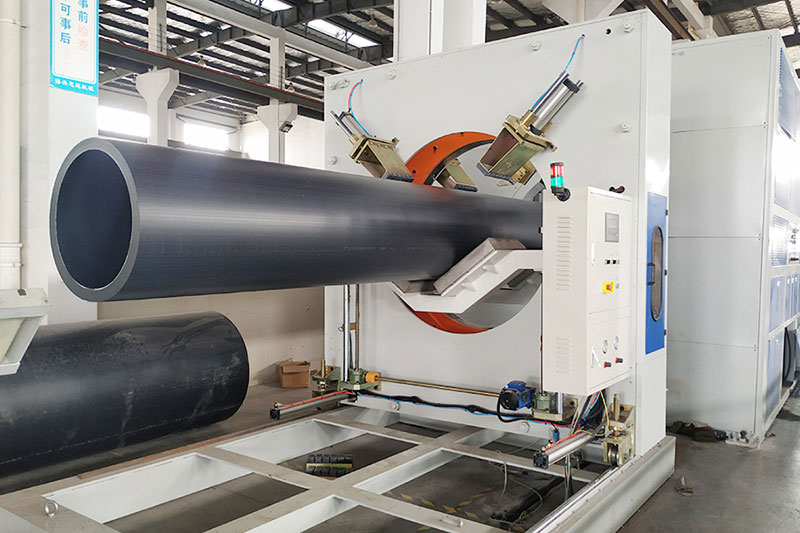

Chipless-Cutter

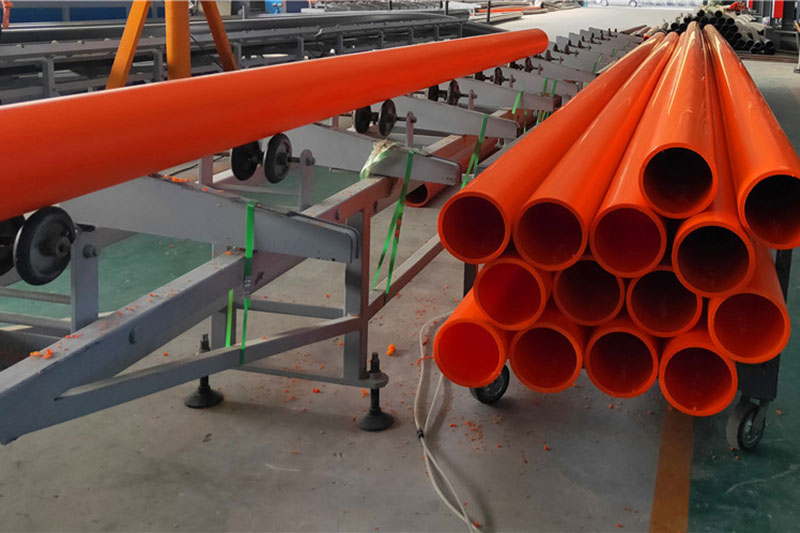

MPP-Pipe

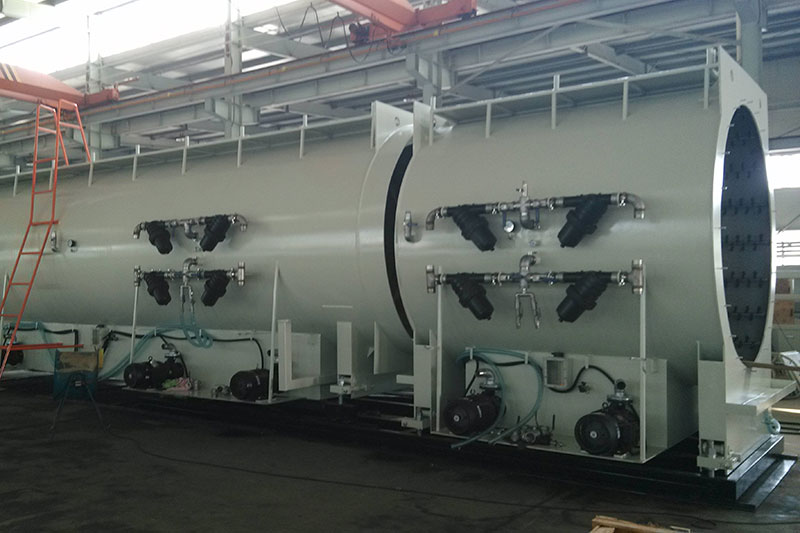

Calibration-tank
PE16-2000-Pipe-Extrusion-line PE1000-Extrusion-Line Mould Chipless-Cutter MPP-Pipe Calibration-tank

Product Description

Production process:

Single screw extruder —Pipe mould—-Vacuum calibration tank —-Cooling tank —-Haul-off—-Cutter—–Stacker/winder

Application:
HDPE pipes are perfectly suited for a wide range of applications, from water supply and irrigation systems to gas distribution and sewerage networks. They seamlessly integrate into diverse environments, providing a robust and reliable solution for fluid transportation. It can also produce MPP electric pipe in same line.
Performance and advantages:
HDPE pipe extrusion line has the characteristics of unique structure, high degree of automation, convenient operation, stable and reliable continuous production. Extrusion output is large, the plasticization is good, and the energy consumption is low. The mould is newly designed by our company, which perfectly solves the problem of sagging. The pipes produced by this production line have moderate rigidity, strength, good flexibility, creep resistance, environmental stress crack resistance and good thermal welding performance, and have become the first choice for urban gas transmission pipes and outdoor water supply pipes.

Main Technical Specification

Model Pipe diameter (mm) Extruder Production capacity(kg/h) Main extruder motor power (kw)
WSPEG-63
Φ16-63
WS60/38
200-300
90
WSPEG-160
Φ63-160
WS65/38
250-350
110
WSPEG-250
Φ75-250
WS75/38
300-450
160
WSPEG-450
Φ160-450
WS75/38&WS90/38
400-600
250
WSPEG-630
Φ315-630
WS90/38
500-800
280
WSPEG -800
Φ450-800
WS90/38&WS120/38
700-1000
315
WSPEG 1200
Φ800-1200
WS120/38+75/38
800-1300
315+160
WSPEG-1600
Φ1000-1600
WS120/38+90/38
1000-1600
315+250

Note: Information listed above are for reference only, the production line can be designed by customer’s requirements.
